[F/OS] Blockly Highlighter: Instantly Find & Highlight Any Kodular Block in Seconds!

[Passos_0213]

Blockly Highlighter

Watch the demo video: https://youtu.be/9JejveXwCaY

---

Overview

Blockly Highlighter is a lightweight browser extension for Chrome, Firefox, and Opera that helps you quickly locate, highlight, and clear visual blocks by keyword in Blockly-based environments such as Niotron, Android Builder, Kodular Creator and MIT App Inventor based.
You can use the graphical popup or keyboard shortcuts to search instantly.

Features

• Keyword Search: Find blocks whose text labels include your search term using a popup or keyboard shortcut (Ctrl + Shift + F / ⌘ + Shift + F on macOS).
• Yellow Highlight: Matching blocks are outlined with a yellow neon glow.
• Clear Highlights: Remove all highlights with one click or via Ctrl + Shift + L.
• Match Counter: Instantly see how many blocks matched your search.
• Language Support: Switch between English, Português, and Español in the popup.
• Fast & Lightweight: Runs only when you use it—no background scripts, no lag.

Installation

Chrome

1. Clone this repository or download from the Chrome Web Store:

   git clone https://github.com/iagolirapasssos/Blockly-Highlighter.git


2. Open Chrome and go to chrome://extensions/.

3. Enable Developer mode.

4. Click Load unpacked and select the extension’s folder.

5. Pin the Blockly Highlighter icon for quick access.

Firefox

1. Open about:debugging#/runtime/this-firefox in Firefox.
2. Click Load Temporary Add-on….
3. Select the manifest.json file from the extension folder.
4. Pin the Blockly Highlighter icon to your toolbar.

Opera

Method 1: Manual

1. Go to opera://extensions/.
2. Enable Developer mode.
3. Click Load unpacked and select your extension folder.

Method 2: Chrome Web Store

• Install the Install Chrome Extensions add-on (only once).
• Visit the Chrome Web Store and install Blockly Highlighter directly.

---

Usage

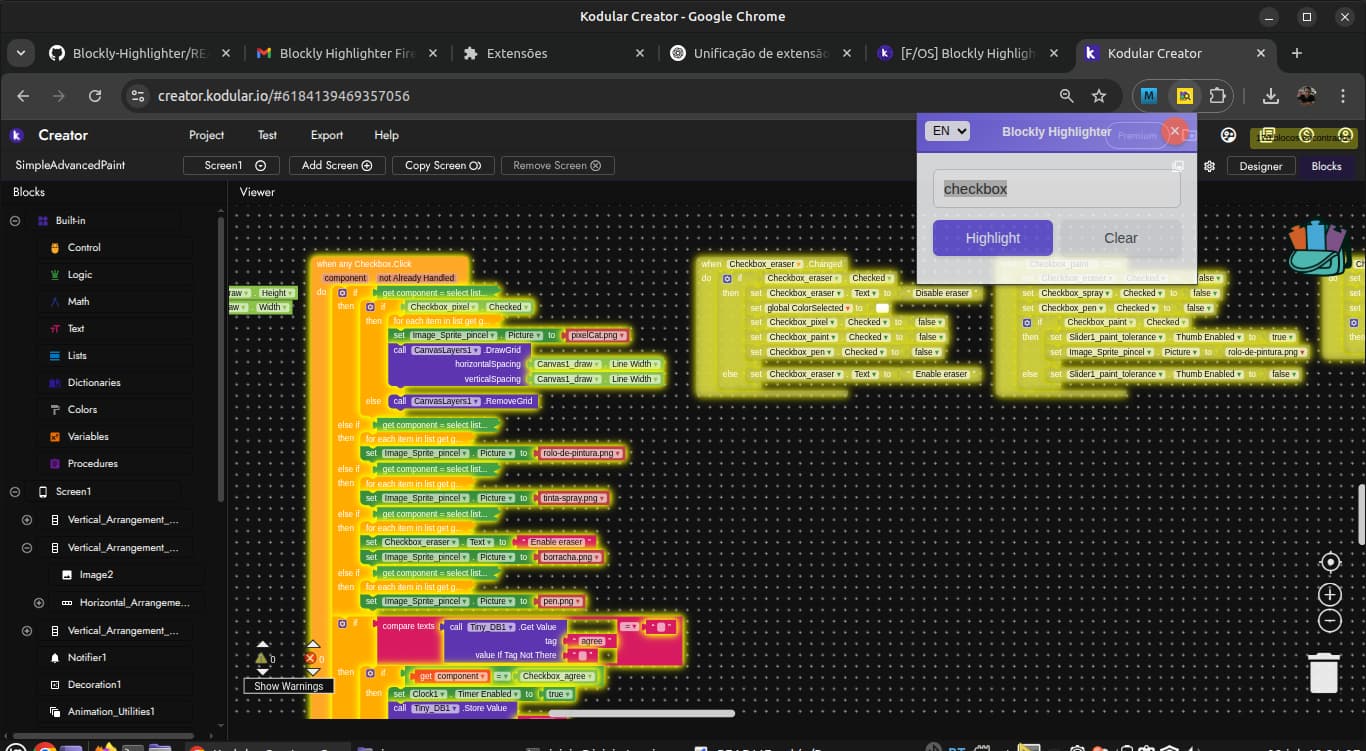

Popup:

1. Click the Blockly Highlighter icon in your toolbar.
2. (Optional) Select your preferred language from the dropdown (EN/PT/ES).
3. Enter a keyword and press Highlight or hit Enter.
4. All blocks containing that keyword will glow yellow and the match counter will appear.
5. Click Clear to remove highlights and restore original colors.

Keyboard Shortcuts:

• Ctrl + Shift + F (or ⌘ + Shift + F on macOS): Open the search prompt anywhere on a supported Blockly workspace.
• Ctrl + Shift + L: Instantly clear all highlights.

---

Permissions

• activeTab: Temporary access to inject scripts into the page.

• scripting: Required to run highlight/clear logic.

• Host permissions (in manifest.json):

  • https://ai2.appinventor.mit.edu/*
  • https://creator.kodular.io/*
  • (Add more if you use other Blockly-based platforms.)

These permissions ensure the extension only runs on Blockly workspaces and only when you use it.

---

Development

1. Edit manifest.json, content_script.js, popup.html, popup.js, or styles.css as needed.
2. Bump the version in manifest.json.
3. Reload the extension on chrome://extensions, about:debugging, or opera://extensions.
4. Test in a Blockly workspace.

---

Contributing

Contributions are welcome!

• Open an issue or submit a pull request.
• Follow existing code style.
• Increment the version and update the changelog if applicable.
• Clearly describe any new features or fixes.

---

License

MIT License. See the LICENSE file for details.

---

Note: the extension is compatible with App Inventor, Kodular, Niotron and Android builder.

[Passos_0213]

Could someone exchange the images for those in the builder below?
